ArgoCD Image Updater (현재 Beta 버전)

by 이강복 2023. 2. 24.

Argo CD Image Updater는 Argo CD에서 관리하는 Kubernetes 워크로드의 컨테이너 이미지를 자동으로 업데이트하는 도구입니다. 간단히 말해서 Argo CD 애플리케이션 리소스의 주석으로 지정된 이미지 버전을 추적하고 Argo CD API를 사용하여 매개변수 재정의를 설정하여 업데이트합니다.

현재 Kustomize 또는 Helm 도구를 사용하여 빌드된 애플리케이션에서만 작동합니다 . 일반 YAML 또는 사용자 정의 도구로 빌드된 애플리케이션은 아직 지원되지 않습니다(아마도 지원되지 않을 수도 있음).



ArgoCD Image Updater를 사용하려면 Kustomize/Helm Chart를 사용해야 한다.

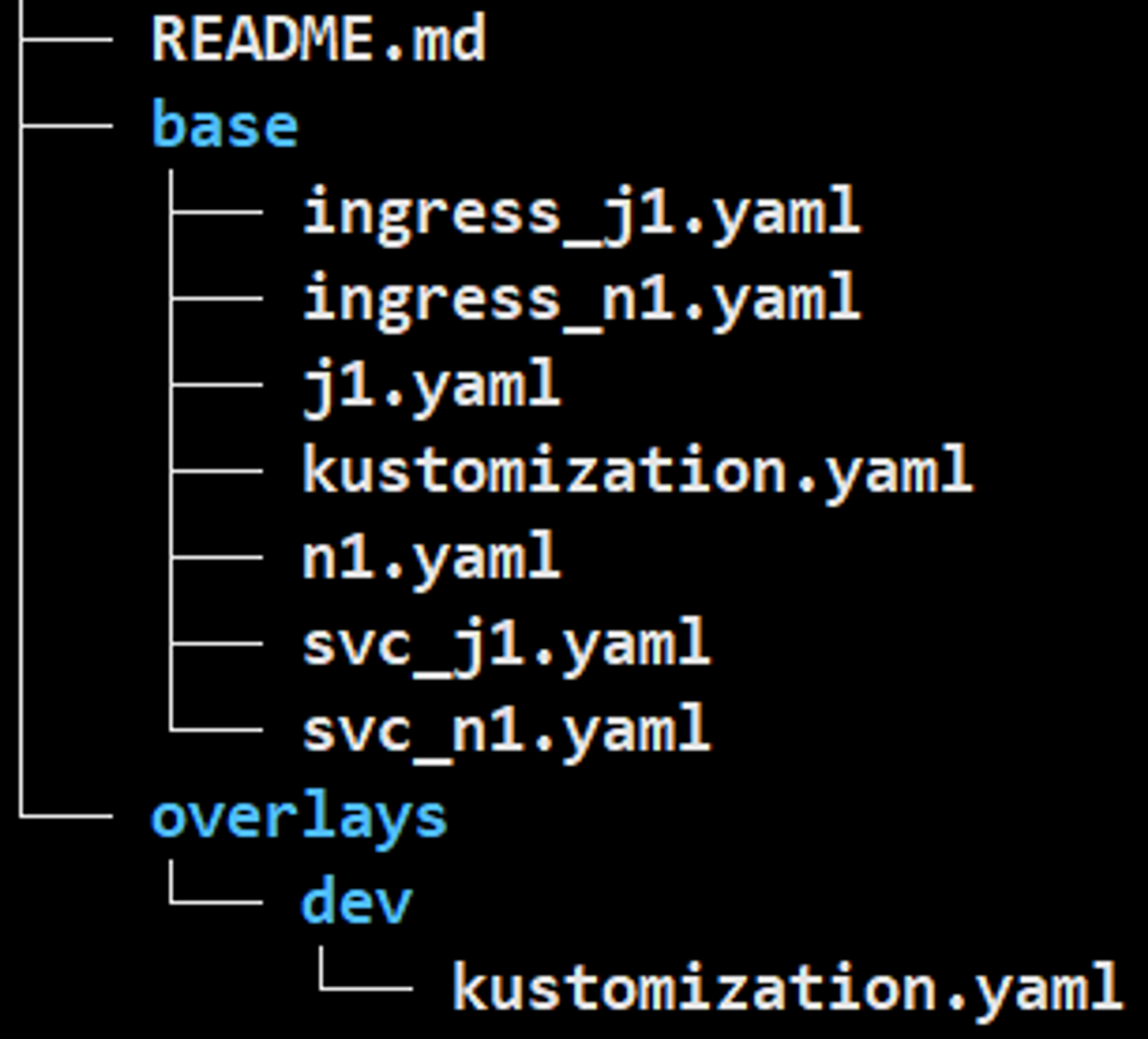

Kustomize

base/kustomization.yaml

resources:
- n1.yaml
- j1.yaml
- ingress_n1.yaml
- ingress_j1.yaml
- svc_n1.yaml
- svc_j1.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

overlays/dev/kustomization.yaml

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
images:
- name: <https://registry-1.docker.io/kangbock/nginx>
  newTag: latest
- name: <https://registry-1.docker.io/kangbock/nodejs>
  newTag: latest
resources:
- ../../base

cd overlays/dev/
kustomize edit set image <https://registry-1.docker.io/kangbock/nginx:latest>

cd ../..
kustomize build overlays/dev/.

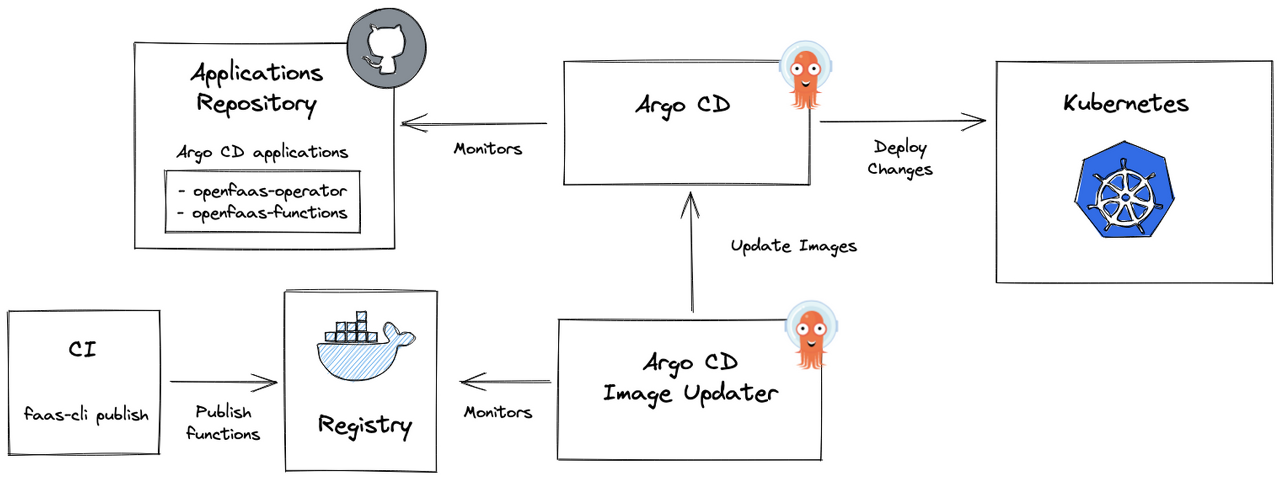

ArgoCD Image Updater

ArgoCD image updater

  • ArgoCD image updater install.yaml (참고)
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/name: argocd-image-updater
    app.kubernetes.io/part-of: argocd-image-updater
  name: argocd-image-updater
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/name: argocd-image-updater
    app.kubernetes.io/part-of: argocd-image-updater
  name: argocd-image-updater
rules:
- apiGroups:
  - ""
  resources:
  - secrets
  - configmaps
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - argoproj.io
  resources:
  - applications
  verbs:
  - get
  - list
  - update
  - patch
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/name: argocd-image-updater
    app.kubernetes.io/part-of: argocd-image-updater
  name: argocd-image-updater
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: argocd-image-updater
subjects:
- kind: ServiceAccount
  name: argocd-image-updater
---
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    app.kubernetes.io/name: argocd-image-updater-config
    app.kubernetes.io/part-of: argocd-image-updater
  name: argocd-image-updater-config
---
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    app.kubernetes.io/name: argocd-image-updater-ssh-config
    app.kubernetes.io/part-of: argocd-image-updater
  name: argocd-image-updater-ssh-config
---
apiVersion: v1
kind: Secret
metadata:
  labels:
    app.kubernetes.io/name: argocd-image-updater-secret
    app.kubernetes.io/part-of: argocd-image-updater
  name: argocd-image-updater-secret
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/name: argocd-image-updater
    app.kubernetes.io/part-of: argocd-image-updater
  name: argocd-image-updater
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: argocd-image-updater
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app.kubernetes.io/name: argocd-image-updater
    spec:
      containers:
      - command:
        - /usr/local/bin/argocd-image-updater
        - run
        env:
        - name: APPLICATIONS_API
          valueFrom:
            configMapKeyRef:
              key: applications_api
              name: argocd-image-updater-config
              optional: true
        - name: ARGOCD_GRPC_WEB
          valueFrom:
            configMapKeyRef:
              key: argocd.grpc_web
              name: argocd-image-updater-config
              optional: true
        - name: ARGOCD_SERVER
          valueFrom:
            configMapKeyRef:
              key: argocd.server_addr
              name: argocd-image-updater-config
              optional: true
        - name: ARGOCD_INSECURE
          valueFrom:
            configMapKeyRef:
              key: argocd.insecure
              name: argocd-image-updater-config
              optional: true
        - name: ARGOCD_PLAINTEXT
          valueFrom:
            configMapKeyRef:
              key: argocd.plaintext
              name: argocd-image-updater-config
              optional: true
        - name: ARGOCD_TOKEN
          valueFrom:
            secretKeyRef:
              key: argocd.token
              name: argocd-image-updater-secret
              optional: true
        - name: IMAGE_UPDATER_LOGLEVEL
          valueFrom:
            configMapKeyRef:
              key: log.level
              name: argocd-image-updater-config
              optional: true
        - name: GIT_COMMIT_USER
          valueFrom:
            configMapKeyRef:
              key: git.user
              name: argocd-image-updater-config
              optional: true
        - name: GIT_COMMIT_EMAIL
          valueFrom:
            configMapKeyRef:
              key: git.email
              name: argocd-image-updater-config
              optional: true
        - name: IMAGE_UPDATER_KUBE_EVENTS
          valueFrom:
            configMapKeyRef:
              key: kube.events
              name: argocd-image-updater-config
              optional: true
        image: quay.io/argoprojlabs/argocd-image-updater:v0.12.0
        imagePullPolicy: Always
        livenessProbe:
          httpGet:
            path: /healthz
            port: 8080
          initialDelaySeconds: 3
          periodSeconds: 30
        name: argocd-image-updater
        ports:
        - containerPort: 8080
        readinessProbe:
          httpGet:
            path: /healthz
            port: 8080
          initialDelaySeconds: 3
          periodSeconds: 30
        volumeMounts:
        - mountPath: /app/config
          name: image-updater-conf
        - mountPath: /app/config/ssh
          name: ssh-known-hosts
        - mountPath: /app/.ssh
          name: ssh-config
      serviceAccountName: argocd-image-updater
      volumes:
      - configMap:
          items:
          - key: registries.conf
            path: registries.conf
          - key: git.commit-message-template
            path: commit.template
          name: argocd-image-updater-config
          optional: true
        name: image-updater-conf
      - configMap:
          name: argocd-ssh-known-hosts-cm
          optional: true
        name: ssh-known-hosts
      - configMap:
          name: argocd-image-updater-ssh-config
          optional: true
        name: ssh-config



ArgoCD cli 설치

curl -sSL -o argocd-linux-amd64 <https://github.com/argoproj/argo-cd/releases/latest/download/argocd-linux-amd64>
sudo install -m 555 argocd-linux-amd64 /usr/local/bin/argocd
rm argocd-linux-amd64

ArgoCD login

kubectl patch svc argocd-server -n argocd -p '{"spec": {"type": "LoadBalancer"}}'
kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d; echo
argocd login localhost

로그 레벨 설정하기

kubectl edit configmap argocd-image-updater-config -n argocd

apiVersion: v1
kind: ConfigMap
data:
  # log.level can be one of trace, debug, info, warn or error
  log.level: debug

로컬 계정 설정하기

kubectl edit configmap argocd-cm -n argocd

apiVersion: v1
kind: ConfigMap
data:
  # api 접근 용도로만 사용할꺼기 때문에 apiKey 만 적어준다
  accounts.image-updater: apiKey

argocd account list

계정 권한 설정하기

kubectl edit configmap argocd-rbac-cm -n argocd

apiVersion: v1
kind: ConfigMap
data:
  policy.csv: |
    p, role:image-updater, applications, get, */*, allow
    p, role:image-updater, applications, update, */*, allow
    g, image-updater, role:image-updater
  policy.default: role.readonly

Argo CD Endpoint 설정

kubectl edit configmap argocd-image-updater-config -n argocd

apiVersion: v1
data:
  applications_api: argocd
  argocd.grpc_web: "true"
  argocd.insecure: "false"
  argocd.plaintext: "false"
  argocd.server_addr: <argocd 접속 주소>
kind: ConfigMap
  • applications_api : argocd로 고정
  • argocd.grpc_web : HTTP/2를 통해 GRPC 대신 GRPC_WEB 프로토콜을 사용할지 여부
  • argocd.insecure : Argo CD API endpoint의 잘못된 TLS 인증서를 무시할지 여부
  • argocd.plaintext : TLS (https) 대신 일반 텍스트 연결(http)을 사용할지 여부

Docker Hub 지정

kubectl edit configmap argocd-image-updater-config -n argocd

data:
  registries.conf: |
    registries:
      - name: Docker Hub
        prefix: docker.io
        api_url: <https://registry-1.docker.io/kangbock/nginx:latest>
        credentials: secret:argocd/dockerhub-secret
        defaultns: library
        default: true
      - name: Docker Hub
        prefix: docker.io
        api_url: <https://hub.docker.com/repository/docker/kangbock/nginx/general>
        credentials: secret:argocd/dockerhub-secret
        defaultns: library
        default: true
  • pipeline
pipeline {
    agent any

    environment {
        GIT_URL1 = "https://github.com/kangbock/jenkins.git"
        GIT_URL2 = "https://github.com/kangbock/ArgoCD.git"
    }

    tools {
        nodejs "nodejs-tool"
    }

    stages {
        stage('Pull1') {
            steps {
                git url: "${GIT_URL1}", branch: "main", poll: true, changelog: true
            }
        }

        stage('Build1') {
            steps {
                sh 'docker build -t kangbock/nginx:${BUILD_NUMBER} ./nginx/'
                sh 'docker build -t kangbock/nodejs:${BUILD_NUMBER} ./nodejs/'
            }
        }

        stage('Push1') {
            steps{
                sh 'docker push kangbock/nginx:${BUILD_NUMBER}'
                sh 'docker push kangbock/nodejs:${BUILD_NUMBER}'
            }
        }

        stage('Pull2') {
            steps {
                git url: "${GIT_URL2}", branch: "main", poll: true, changelog: true
            }
        }

        stage('Build2') {
            steps {
                sh "sed -i ':%s/newTag:.*/newTag:${BUILD_NUMBER}/g' ./overlays/dev/kustomization.yaml"
            }
        }

        stage('Push2') {
            steps{
                withCredentials([gitUsernamePassword(credentialsId: 'dockerhub-secret')]) {
                    sh 'git config --global user.name "lkb"'
                    sh 'git config --global user.mail "kangbock0827@naver.com"'
                    sh 'git remote remove origin'
                    sh 'git remote add origin ${GIT_URL2}'
                    sh 'git add .'
                    sh 'git commit -m "step ${BUILD_NUMBER}"'
                    sh 'git push origin main'
                }
            }
        }

        stage('Finish') {
            steps{
                sh 'docker images -qf dangling=true | xargs -I{} docker rmi {}'
                sh 'docker image prune -af'
            }
        }
    }
}



kubectl exec -n argocd --stdin --tty pod/argocd-image-updater-84ffbd4747-55ssl -- /bin/sh



  • argocd-image-updater.argoproj.io/image-list : alias=kangbock/nginx:latest
  • argocd-image-updater.argoproj.io/alias.pull-secret : pullsecret:argocd/dockerhub-secret
  • argocd-image-updater.argoproj.io/write-back-method : git (git or argocd)
  • argocd-image-updater.argoproj.io/alias.update-strategy : latest
  • argocd-image-updater.argoproj.io/alias.allow-tags : regexp :^[0-9a-f]{7}$
  • argocd-image-updater.argoproj.io/write-back-target: kustomization:./
  •

kubectl logs pod/argocd-image-updater-8687d55bb-mxdn2 -n argocd

kubectl -n argocd rollout restart deployment argocd-image-updater



kubectl create -n argocd secret docker-registry dockerhub-secret --docker-username "kangbock" --docker-password=''  --docker-email=kangbock0827@naver.com
